Jazz +

ORQUESTRA mec 21

Rockers / Cover Plates

  Designation Ref. Color
    Ref. Color

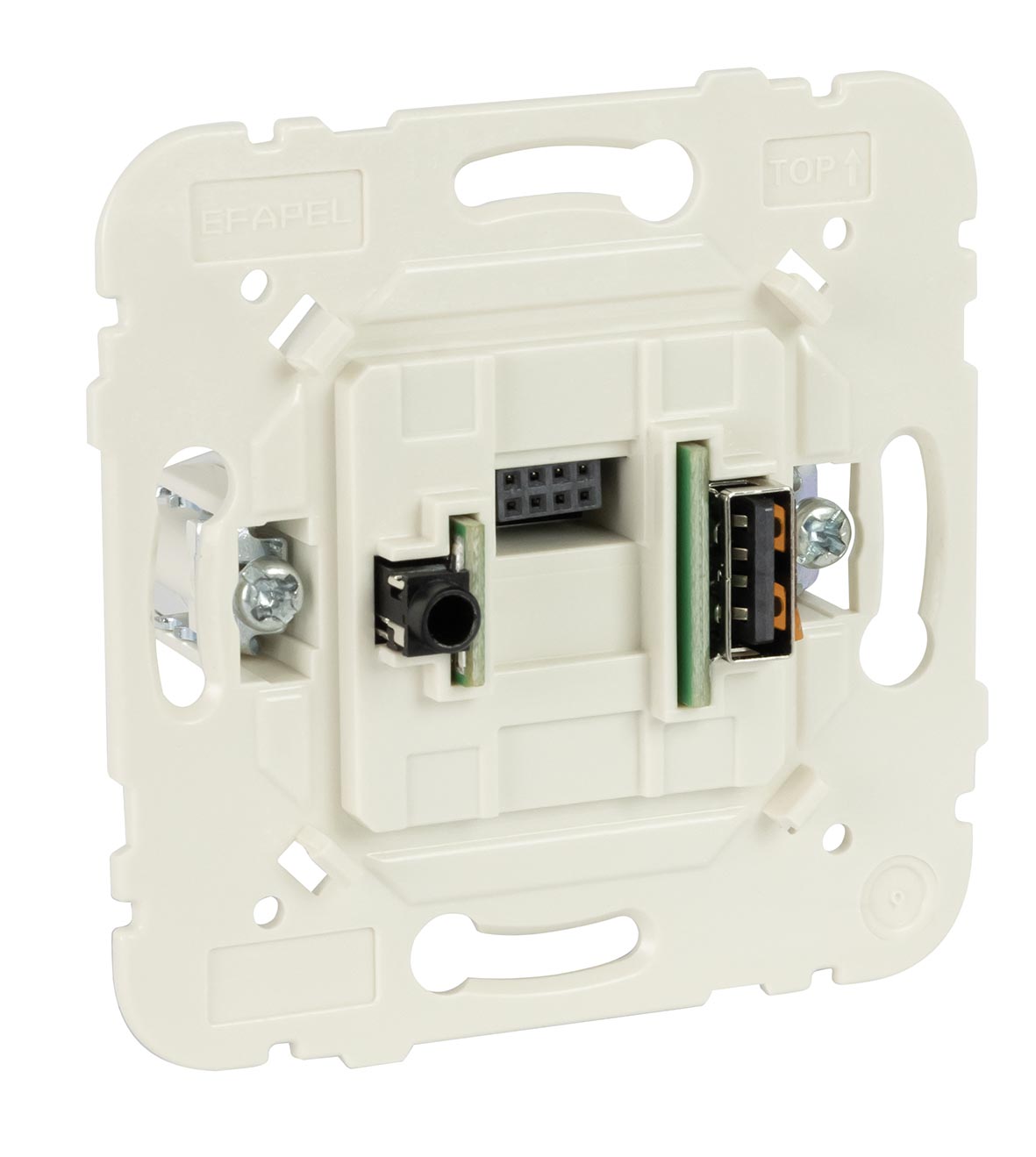

Central with USB, Bluetooth and Jack 3,5 mm 12 V ----

Central with USB, Bluetooth and Jack 3,5 mm 12 V ----

Allows input and distribution of 1 external supply of type Jack
3,5 mm, USB or Bluetooth
Distributes sound up to 8 control units

75211

-
See Rockers / Cover Plates
Cover Plate for Central with USB, Bluetooth and Jack 3,5 mm

Cover Plate for Central with USB, Bluetooth and Jack 3,5 mm

90856 T

BR MF GE PE AL IS PM DU

Cover Plate for Central with USB, Bluetooth and Jack 3,5 mm

Cover Plate for Central with USB, Bluetooth and Jack 3,5 mm

50856 T

BR MF BM PM PR GR PL CH

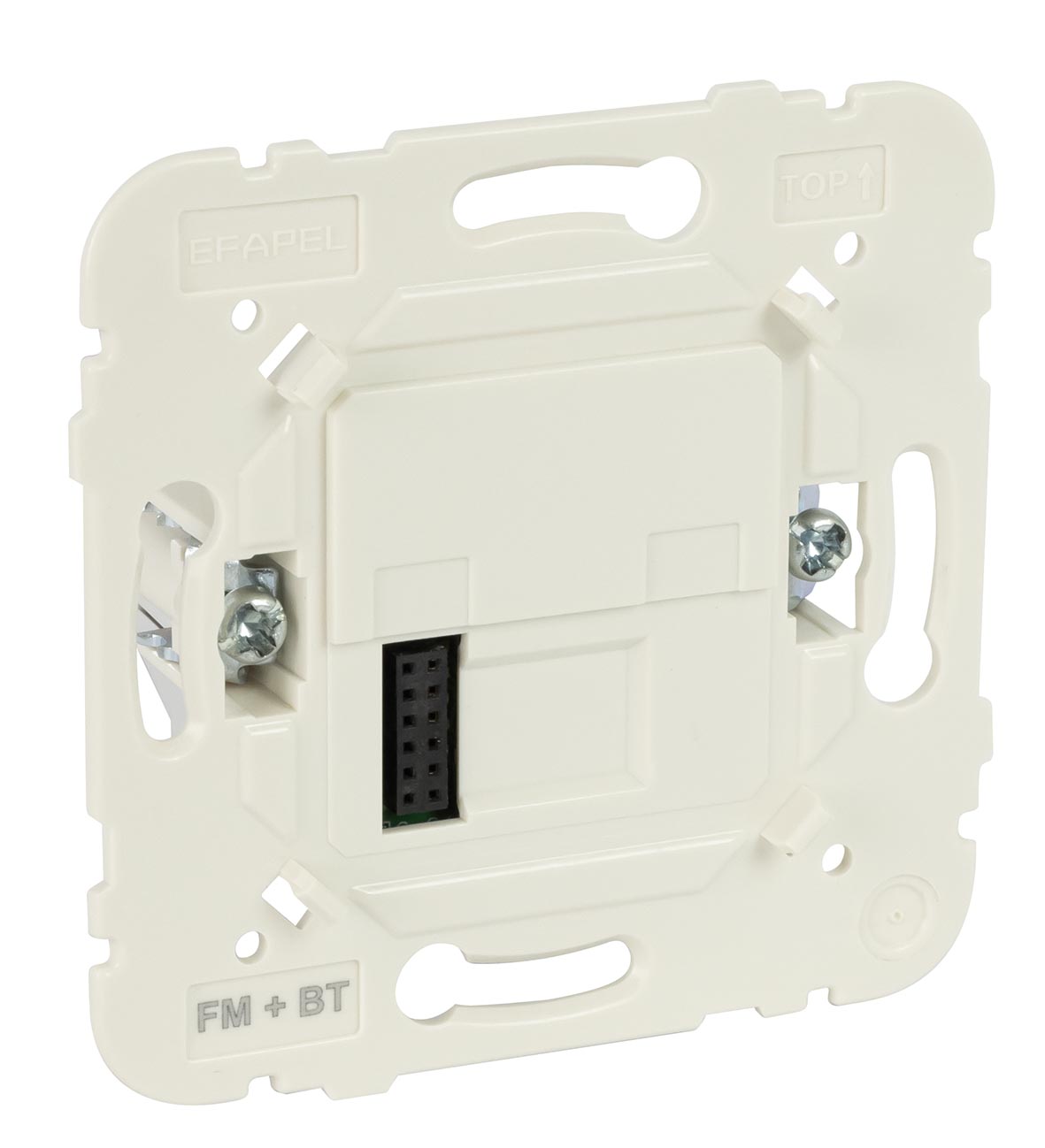

Control Unit FM e Bluetooth 12 V ---

Control Unit FM e Bluetooth 12 V ---

With FM radio tuner
Compatible Bluetooth
Rated voltage: 12 V ---
Impedance: 2 output to 8 Ω each
Power for output: 2 W

75221

-
See Rockers / Cover Plates
Cover Plate for Control FM with Display

Cover Plate for Control FM with Display

90855 T

BR MF GE PE AL IS PM DU

Cover Plate for Control FM with Display

Cover Plate for Control FM with Display

50855 T

BR MF BM PM PR GR PL CH

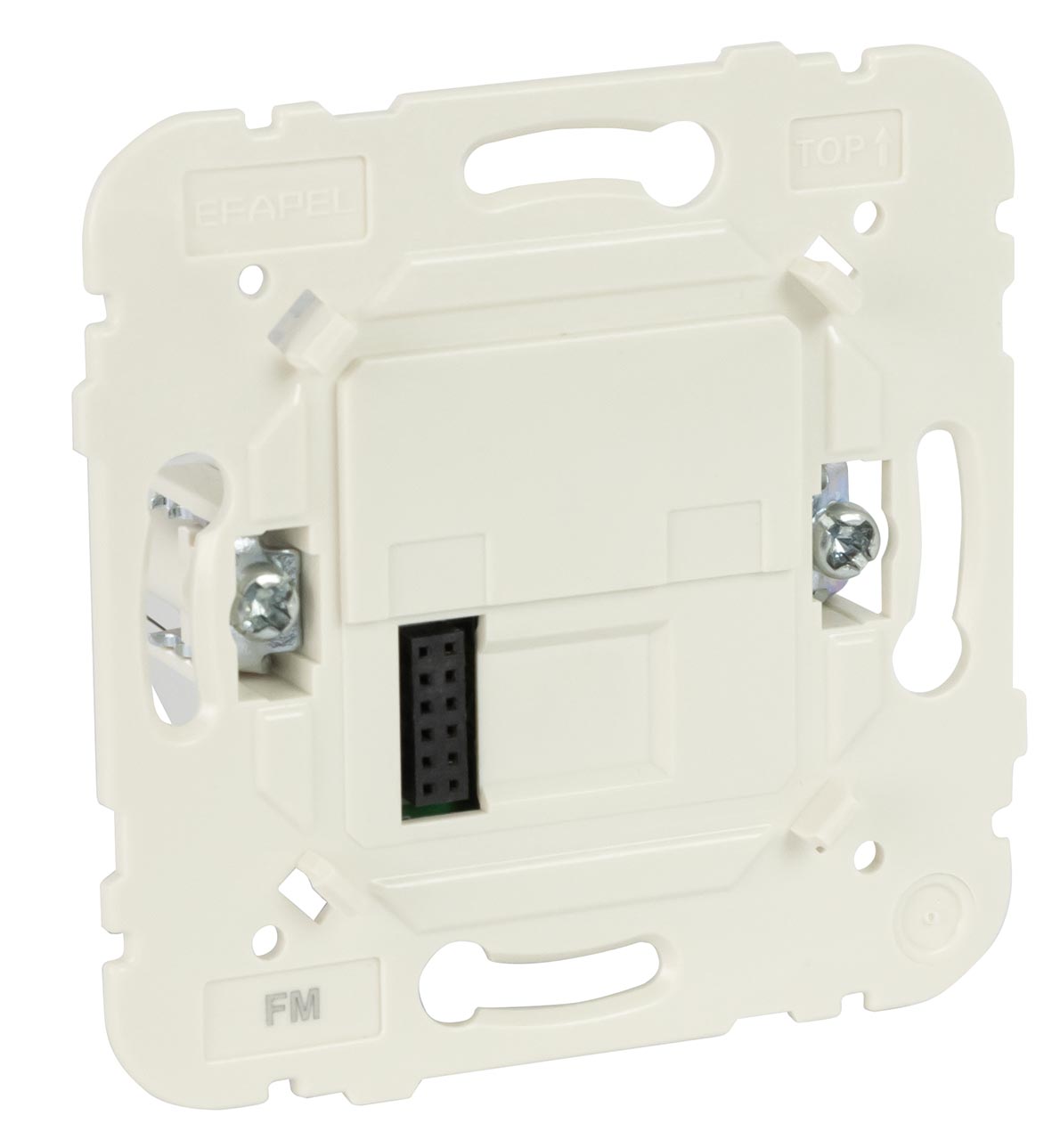

Control Unit FM 12 V ---

Control Unit FM 12 V ---

With FM radio tuner
Rated voltage: 12 V ---
Impedance: 2 output to 8 Ω each
Power for output: 2 W

75220

-
See Rockers / Cover Plates
Cover Plate for Control FM with Display

Cover Plate for Control FM with Display

90855 T

BR MF GE PE AL IS PM DU

Cover Plate for Control FM with Display

Cover Plate for Control FM with Display

50855 T

BR MF BM PM PR GR PL CH
