Logus 90

Subtitle

  • S - Semi-assembled;

  • T - Rocker, Cover Plate or Frame;

  • BR - White;

  • MF - Ivory;

  • GE - Ice;

  • PE - Pearl;

  • AL - Aluminium;

  • IS - Gray;

  • AT - Anthracite;

  • PM - Black;

  • DU - Golden;

  • LR - Orange;

  • VD - Green;

  • VM - Red;

  • IC - Colorless.

Other Mechanisms mec21

Rockers / Cover Plates

  Designation Ref. Color
    Ref. Color
Orientation Light White

Orientation Light White

230V~ - 50/60Hz
L1 – 0,2W; L2 – 0,4W.

21388

-
Orientation Light White with Battery

Orientation Light White with Battery

230V~ - 50/60Hz
L1 – Pilot Light OFF; L2 –Pilot Light ON.

21389

-
See Rockers / Cover Plates

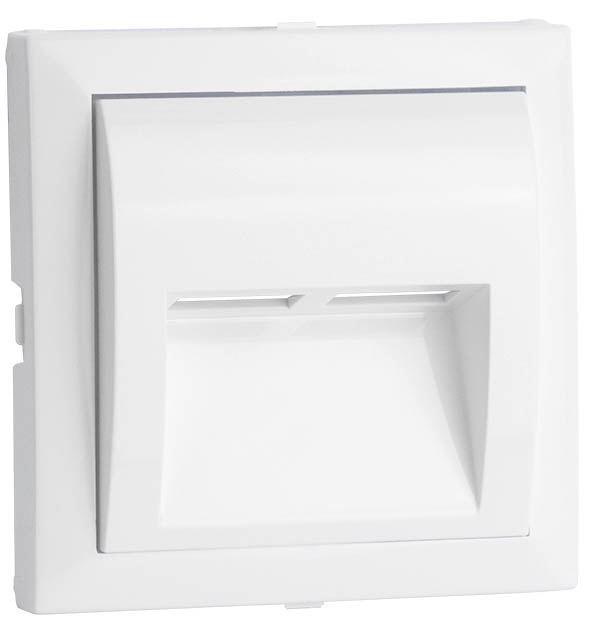

Cover Plate/Orientation Light

Cover Plate/Orientation Light

90782 T

BR MF GE PE AL IS PM DU

Cable Outlet - Three Terminals

Cable Outlet - Three Terminals

- 3x2,5mm2 - 250V~.

21173

-
Cable Outlet - Four Terminals

Cable Outlet - Four Terminals

- 4x2,5mm2 - 250V~.

21174

-
See Rockers / Cover Plates

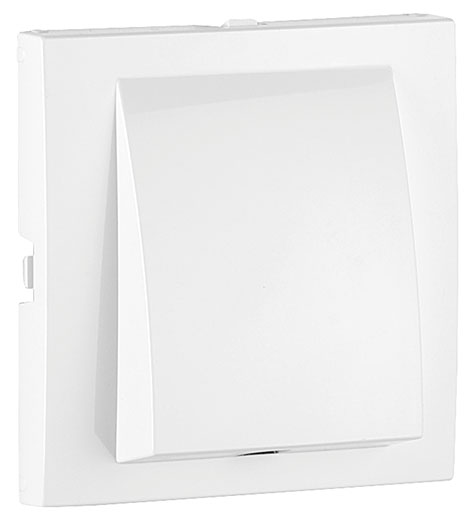

Cover Plate for Cable Outlets

Cover Plate for Cable Outlets

90671 T

BR MF GE PE AL IS PM DU

Pilot Light

Pilot Light

- Max. 5W (E14) 250V~.
- To be used with Lamp (Ref. 81012).
- To be used with Lamp (Ref. 81013).

21360

-
See Rockers / Cover Plates

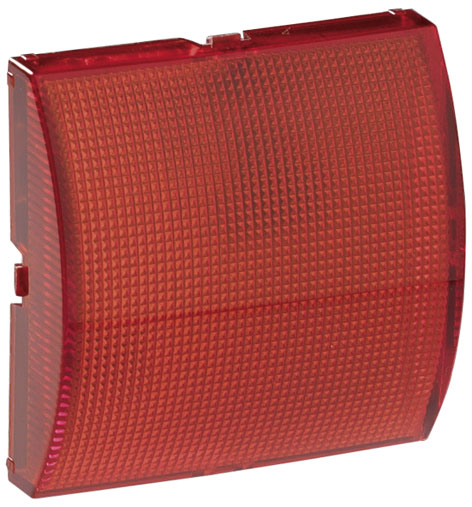

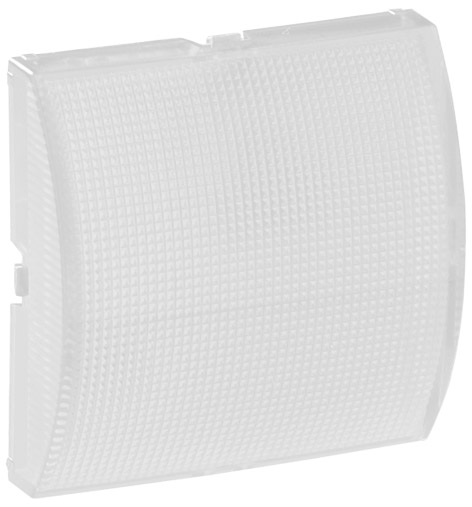

Cover for Pilot Light

Cover for Pilot Light

90781 T

IC VD LR VM

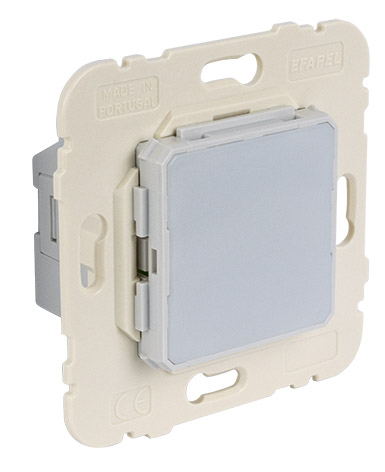

LED Pilot Light

LED Pilot Light

230V~ - 50/60Hz
L1 – 0,2W; L2 – 0,4W (4000K).

21361

-
See Rockers / Cover Plates
Cover for Pilot Light

Cover for Pilot Light

90781 T

IC VD LR VM

Loudspeaker Screw Terminal Socket

Loudspeaker Screw Terminal Socket

21220

-
See Rockers / Cover Plates

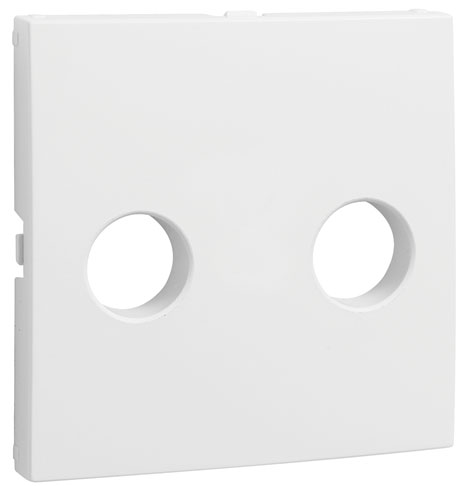

Cover Plate for Screw Terminal Loudspeaker Socket

Cover Plate for Screw Terminal Loudspeaker Socket

90713 T

BR MF GE PE AL IS PM DU

Support for Blind Cover Plate

Support for Blind Cover Plate

21222

-
See Rockers / Cover Plates

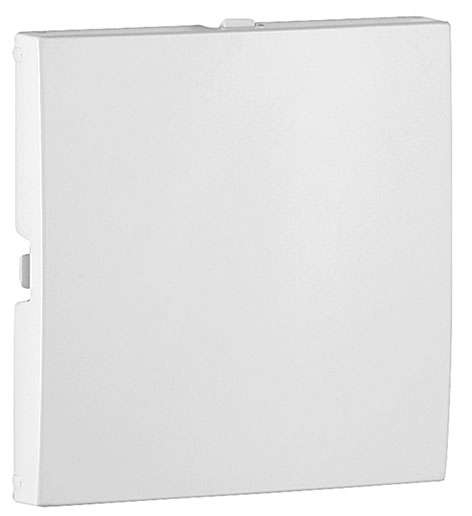

Blind Cover Plate

Blind Cover Plate

90677 T

BR MF GE PE AL IS PM DU

Buzzer

Buzzer

230V~ - 50Hz
- D type.
- 5/15 sec.

21990

-
See Rockers / Cover Plates

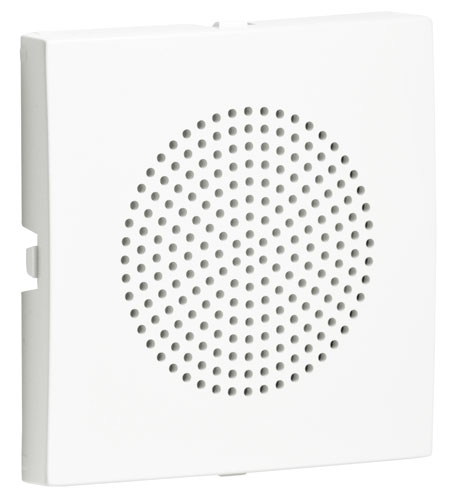

Cover Plate for Loudspeaker of 2” - 32 Ohm / Buzzer

Cover Plate for Loudspeaker of 2” - 32 Ohm / Buzzer

90710 T

BR MF GE PE AL IS PM DU
